Welded Fittings and Their Applications

Oct 14 , 2023

Welded fittings play a vital role in various industries, providing a strong and reliable connection between pipes and other components. These versatile components are essential for ensuring the integrity of fluid and gas systems. In this article, we will explore the world of welded fittings, their types, and their wide range of applications across different sectors.

Understanding Welded Fittings

Welded fittings, as the name suggests, are components that are attached to pipes or tubing through welding. They come in various shapes and sizes to suit the specific requirements of different applications. These fittings are typically made from materials like stainless steel, carbon steel, and alloy steel, ensuring durability and resistance to corrosion.

Types of Welded Fittings

There are several types of welded fittings, each designed for a particular purpose. Here are some of the most common types:

1. Butt Weld Fittings

Butt weld fittings are the most widely used welded fittings. They are designed to connect pipes or tubing of the same diameter, and they come in various forms, including elbows, tees, and reducers. Butt weld fittings are known for their strength and reliability, making them suitable for high-pressure applications.

2. Socket Weld Fittings

Socket weld fittings are used to connect pipes or tubing with a smaller diameter to those with a larger diameter. These fittings are attached by inserting the smaller pipe into the socket of the larger pipe and then welding the joint. They are commonly used in applications with lower pressure requirements.

3. Threaded Fittings

Threaded fittings have threaded ends, allowing them to be screwed onto pipes or tubing. They are convenient for applications that require easy disassembly and reassembly. Threaded fittings are commonly used in plumbing systems and low-pressure applications.

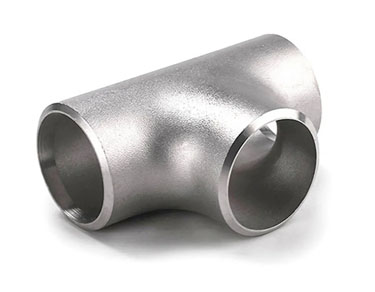

Tee (Straight )

Tee (Straight )

Applications of Welded Fittings

Welded fittings find applications in a wide range of industries and sectors, including but not limited to:

1. Oil and Gas Industry

In the oil and gas sector, welded fittings are used to connect pipes in pipelines, refineries, and offshore drilling platforms. They provide leak-resistant connections and can withstand the high pressures and corrosive environments commonly encountered in this industry.

2. Chemical Industry

Chemical processing plants utilize welded fittings for their resistance to corrosive chemicals. These fittings are essential for maintaining the integrity of the fluid handling systems in these facilities.

3. Power Generation

Power plants, including nuclear, thermal, and hydroelectric facilities, rely on welded fittings for the construction and maintenance of their pipelines and heat exchangers. The high-temperature and high-pressure environments in these facilities demand the use of robust fittings.

4. Construction

In the construction industry, welded fittings are used for plumbing and HVAC systems. These fittings ensure a secure and leak-free connection in residential, commercial, and industrial building projects.

5. Shipbuilding

Shipbuilders employ welded fittings to create watertight connections between pipes and tubing on vessels. The durability of these fittings is crucial to ensure the safety and reliability of marine systems.


Welded fittings are indispensable components in a wide array of industries, offering secure and durable connections for pipes and tubing. Understanding the different types of welded fittings and their applications is essential for selecting the right fittings for specific projects. Whether in the oil and gas sector, chemical industry, power generation, construction, or shipbuilding, these fittings play a pivotal role in maintaining the integrity of fluid and gas systems across various sectors.

For any project, it is crucial to choose the appropriate welded fittings that match the requirements in terms of pressure, temperature, and the nature of the fluid being transported. Proper selection and installation of welded fittings ensure the safety, efficiency, and reliability of the systems in which they are used.
