Questions about Weld Elbows You Should Know

Apr 19 , 2024

Weld elbows are critical components in various industries, particularly in piping systems, where they facilitate changes in direction and flow. Understanding weld elbows and their significance is essential for professionals and enthusiasts alike. Here are some common questions about weld elbows and their answers:


What Are Weld Elbows?


Weld elbows, also known as pipe elbows or welding elbows, are pipe fittings used to change the direction of piping systems. They feature a curved design, typically at a 90-degree or 45-degree angle, allowing fluid or gas to flow smoothly around corners. Weld elbows are welded to the pipe or tubing, providing a secure and leak-proof connection.


What Materials Are Weld Elbows Made of?


Weld elbows are available in a wide range of materials to suit different applications and environmental conditions. Common materials include stainless steel, carbon steel, alloy steel, copper, brass, and various plastics. The choice of material depends on factors such as the fluid or gas being transported, temperature, pressure, and corrosion resistance requirements.

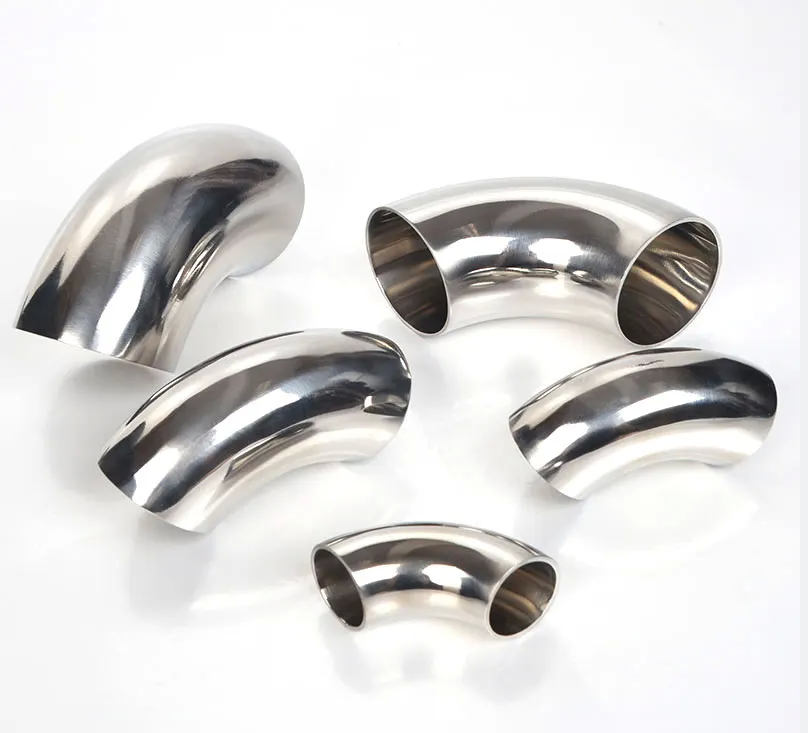

 Elbow 90° LR/SR

 Elbow 90° LR/SR

What Types of Weld Elbows Are Available?


Weld elbows come in various types to accommodate different piping configurations and flow requirements. The most common types include:


  • Long Radius Elbows: These elbows have a curvature radius equal to 1.5 times the pipe diameter, providing smoother flow and reduced pressure drop.

  • Short Radius Elbows: With a curvature radius equal to the pipe diameter, short radius elbows are more compact and suitable for tight spaces but can cause higher pressure drop.

  • 90-Degree Elbows: These elbows change the direction of flow by 90 degrees and are widely used in plumbing and industrial piping systems.

  • 45-Degree Elbows: These elbows change the direction of flow by 45 degrees, offering a more gradual turn and reduced resistance compared to 90-degree elbows.


How Are Weld Elbows Installed?


Installing weld elbows requires precision and adherence to industry standards to ensure proper alignment and leak-free connections. The installation process typically involves the following steps:


  1. Preparation: Clean and inspect the pipe ends to remove any debris, dirt, or contaminants that could affect the weld quality.

  2. Alignment: Align the weld elbow with the pipe ends, ensuring proper orientation and fitment.

  3. Welding: Weld the elbow to the pipe using appropriate welding techniques and procedures, such as gas tungsten arc welding (GTAW), gas metal arc welding (GMAW), or shielded metal arc welding (SMAW).

  4. Testing: Perform pressure and leak tests to verify the integrity of the welded joint and ensure it meets safety and performance requirements.


What Are the Applications of Weld Elbows?


Weld elbows find applications in various industries and sectors where piping systems are prevalent. Some common applications include:


  • Oil and Gas: Weld elbows are used in pipelines for transporting crude oil, natural gas, and refined petroleum products.

  • Chemical Processing: They are utilized in chemical plants and refineries for conveying corrosive chemicals and fluids.

  • Water Treatment: Weld elbows play a vital role in water distribution systems, sewage treatment plants, and desalination facilities.

  • Power Generation: They are employed in power plants for steam, water, and fuel distribution in boilers, turbines, and cooling systems.

  • Construction: Weld elbows are used in building and infrastructure projects for HVAC systems, plumbing, and firefighting installations.


Understanding the fundamentals of weld elbows is essential for anyone involved in piping design, installation, maintenance, or inspection. By knowing the types, materials, installation procedures, and applications of weld elbows, professionals can ensure the reliability, safety, and efficiency of piping systems across various industries.


If you need help in selecting the right elbows for your pneumatic conveying system, it’s best to talk with an expert so you can ensure you get the correct components for your needs.

At CHANGHAO, we won’t sell you anything you don’t need – contact us today to find the right solution for you.
