Differences Between a Flange and a Slip-On Flange

Sep 18 , 2023

Flanges are integral components in various industries, especially in piping systems. They play a crucial role in connecting pipes, valves, and other equipment. Two commonly used types of flanges are standard flanges and slip-on flanges. In this article, we'll explore the key differences between these two types of flanges and their respective applications.

Flanges: A Brief Overview

Before diving into the differences, let's understand what flanges are. Flanges are flat, circular discs with evenly spaced holes for bolts or studs. They are designed to join pipes, valves, pumps, and other equipment in a piping system. Flanges provide easy access for maintenance, inspection, and cleaning of the system.

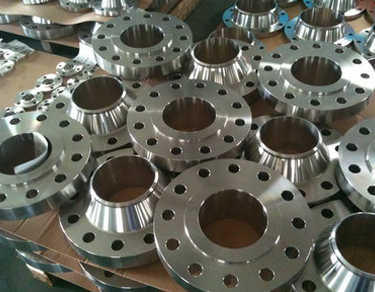

Standard Flanges

Standard flanges, often referred to as weld-neck flanges or raised-face flanges, are the more traditional and commonly used type of flanges. Here are some of the key characteristics of standard flanges:

  • They have a long neck that extends from the flange, which is welded to the pipe.

  • Standard flanges are stronger and more rigid due to the welded neck.

  • They are suitable for high-pressure and high-temperature applications.

  • Alignment of the bolt holes can be critical during installation.

  • These flanges are commonly used in industries such as oil and gas, petrochemical, and power plants.

Slip-On Flanges

Slip-on flanges, as the name suggests, are designed to slip over the pipe and are then welded in place. Here are the key characteristics of slip-on flanges:

  • They have a low hub and lack the extended neck found in standard flanges.

  • Slip-on flanges are relatively easy to align during installation.

  • They are ideal for applications where frequent disassembly is not required.

  • These flanges are commonly used in low-pressure and low-temperature applications.

  • They are often chosen for cost-effective and less critical installations.

    Slip-On Flange

Slip On Flange

Key Differences

Now that we have looked at the characteristics of both standard and slip-on flanges, let's summarize the key differences:

  • Attachment Method: Standard flanges are welded to the pipe, while slip-on flanges slip over the pipe and are also welded.

  • Neck Length: Standard flanges have a long neck, whereas slip-on flanges have a low hub and lack an extended neck.

  • Strength and Rigidity: Standard flanges are generally stronger and more rigid due to the welded neck, making them suitable for high-pressure and high-temperature applications.

  • Alignment: Slip-on flanges are easier to align during installation, which can be advantageous in certain situations.

  • Applications: Standard flanges are preferred for critical applications in industries like oil and gas, whereas slip-on flanges are used in less critical and lower-pressure scenarios.

Common Questions About Flanges

1. Which type of flange is more cost-effective?

Slip-on flanges are often considered more cost-effective due to their simpler design and ease of installation.

2. Can slip-on flanges be used in high-pressure applications?

While slip-on flanges can be used in moderate-pressure applications, they are not typically recommended for high-pressure scenarios where standard flanges are more suitable.

3. Are there other types of flanges besides standard and slip-on?

Yes, there are various other types of flanges, including blind flanges, socket weld flanges, and threaded flanges, each with its own unique features and applications.

4. How do I choose the right flange for my application?

The choice of flange depends on factors such as pressure, temperature, material compatibility, and the specific requirements of your piping system. It's advisable to consult with a qualified engineer or expert to make an informed decision.

In conclusion, understanding the differences between standard flanges and slip-on flanges is essential for selecting the right component for your piping system. Each type has its own advantages and limitations, and the choice should be based on the specific needs of your application.
