Product

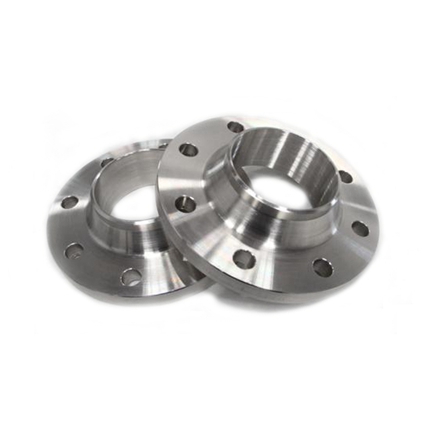

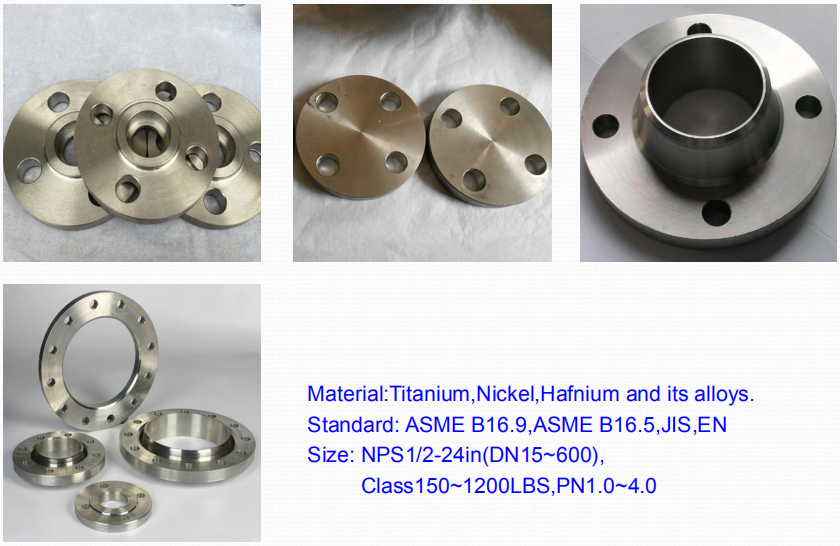

Titanium and titanium alloy flanges

Material

 GR1 GR2 GR3 GR4 GR5 GR7 GR9 GR12

Type

PL,SO,WN,IF,SW,Th,PJ/SE,PJ/RJ,BL,BL(S)

Specification

Size

DN10-600      NPS1/2"-24"

Pressure rating

PN0.25MPa, PN0.6MPa, PN1.0MPa, PN1.6MPa, PN2.5MPa, PN4.0MPa, PN6.3MPa, PN10.0MPa, PN16.0MPa, PN25.0MPa

Class150,300,600,900,1500,2500

Sealing surface type

RF, FF, TG, MFM, RJ, etc.

Standard

ASME B16.5,ANSI B16.5,ASME B16.36,JIS B2220,DIN 2501-2656,HG20592-20635,etc.

Application

Chemical, Petroleum, Machinery, Industry, etc.
